Embedded Files: Binwalk – Searching for data
Embedded Files: Binwalk – Finding unseen data
Have you ever wondered what sort of data could be embedded into a file?
I don’t mean application resources and other easily found files like, pictures, resources, and data you might find using something such as Resource Hacker, PE Explorer, PPEE (Professional PE file Explorer), or DiE (Detect it Easy). I mean file structures that are embedded in such a way, only the signature is what tells you they are most likely there.
Before we look at binwalk, lets start off with some basics to understand how it works.
The Basics: Viewing Resources
Using Resource Hacker (PE Explorer would work as well) we can, for example, view the icon associated with the executable (steam.exe in this case) and change it if we would like to. Pretty cool if you ask me.

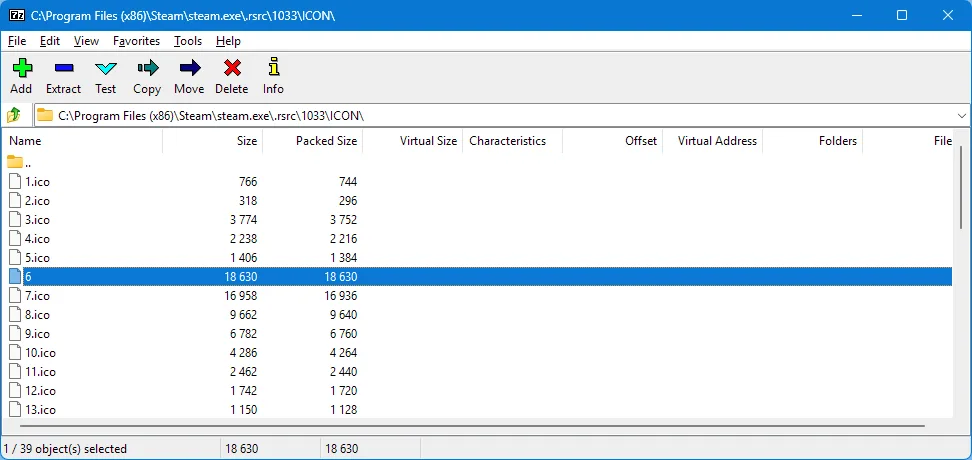

So what else can we do to explorer a little more? If you don’t already know, a lot of the time you can use 7-Zip to view some things, in some files. It won’t show you everything but its a useful thing to keep in mind if you’re trying to view data that might be stored whithin a file. It’s more helpful for self extracting archives and files that have archives stored in them. You might be surprised at what you find if you start poking around! Below is the same .exe opened with 7-Zip. What you see below is the root “folder” containing the PE Sections and the Resource Table folder, then below, the same resource we have selected in Resource Hacker in the example above.
If you find this interesting or just want to learn more about the PE file format of x86 executable files, here are a few links to get you started:
- OS Dev Wiki
- Wikipedia
- Microsoft
- Medium – PE File Structure Explained : A Guide to for Reverse Engineers & Developers
Understanding: Its Magic Numbers!
If you dug around and read a bit from those links above, you may have noticed something – the “magic number” or “magic byte(s)”. The magic of those 2 bytes (it can be larger) is that it’s actually the file (type) signature or what tells the OS and other applications, the expected contents or type of file it is. Apologies if that’s a bit wordy.
Now that we have taken a quick look at the resource for “steam.exe”; Have you ever wondered how 7-Zip knows something is an archive that it can extract? You might think it’s looking at the structure of the file, and while possible, it would waste precious resources to do so; and it can be validated during extraction. What it’s actually doing, is looking for the file signature or those magic bytes at the beginning of a file used to identify what kind of file it is without relying on the file extension. Neat huh? You could change the extension to “.8z” and it would still extract just the same.
So, if you ever wondered how the OS knows a given file is an executable even if you remove the .exe file extension, now you know! The beauty of this is that not only can we have some fun with it, we can use them to identify files embedded within other files! One fun things you can do by manipulating the magic bytes is to spoof a file type to circumvent file uploads that filter the file types you may upload.
Getting a PHP Reverse Shell through an image upload web page exploit via magic byte manipulation.

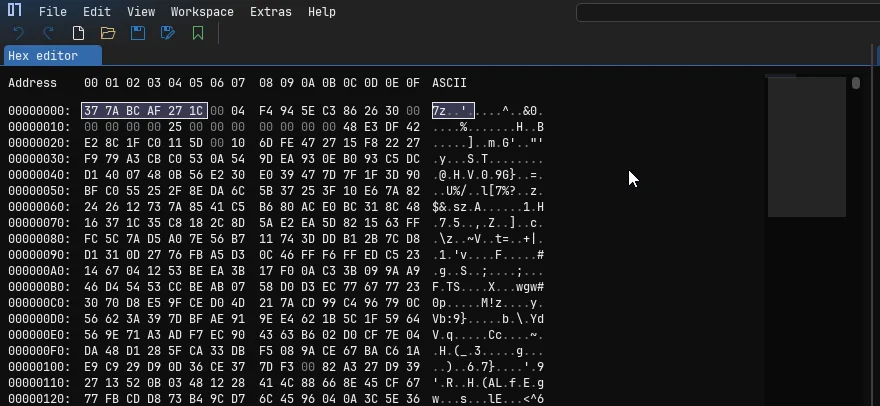

Above we are looking at “steam.exe” but executable files aren’t the only file type with a file signature. The specific byte pattern 7-Zip uses to identify a “.7Z” file is “37 7A BC AF 27 1C” in hexadecimal, which if we take a look at an archive with a hex editor, it looks like this:
The same is true for Windows Executable (.exe) files, with a different signature. In this case it actually shares the same signature with a few other file types – COM, DLL, DRV, EXE, PIF, QTS, QTX, and SYS.
Fun fact: “MZ” are the initials of Mark Zbikowski, one of leading developers of MS-DOS.
For anyone that is curious, the hex editor I’m using is ImHex and it’s by far (to date) my absolute favorite hex editor. It has a ton of cool and useful feature, including analysis, pattern searching, YARA rules and its own custom language “PatternLanguage“. You should check it out if your looking to find or try a new open source hex editor out.
Finding Known Signatures
Since we now understand what they are, how many are there? basically infinite since the magic bytes are decided by the creator / developer of a given file type. There are quite a few common ones you will usually find: exe, dll, com, jpg, png, etc. This is where its nice to have a list of known signature you can find:
- GCK File Signature Table (My favorite)
- List of File Signatures (Wikipedia)
Keep in mind, if you can’t find a signature for something publicly, you can “create” your own. A signature is just a unique byte pattern that can be used to identify a file or anything else. Hopefully its at the start or end of a file. Otherwise you’re looking for any pattern that spans multiple files of the same type. (ie. you see XY or ’58 59′ at the beginning of every file).
Discovering Data: Binwalk
GitHub Repository – https://github.com/ReFirmLabs/binwalk

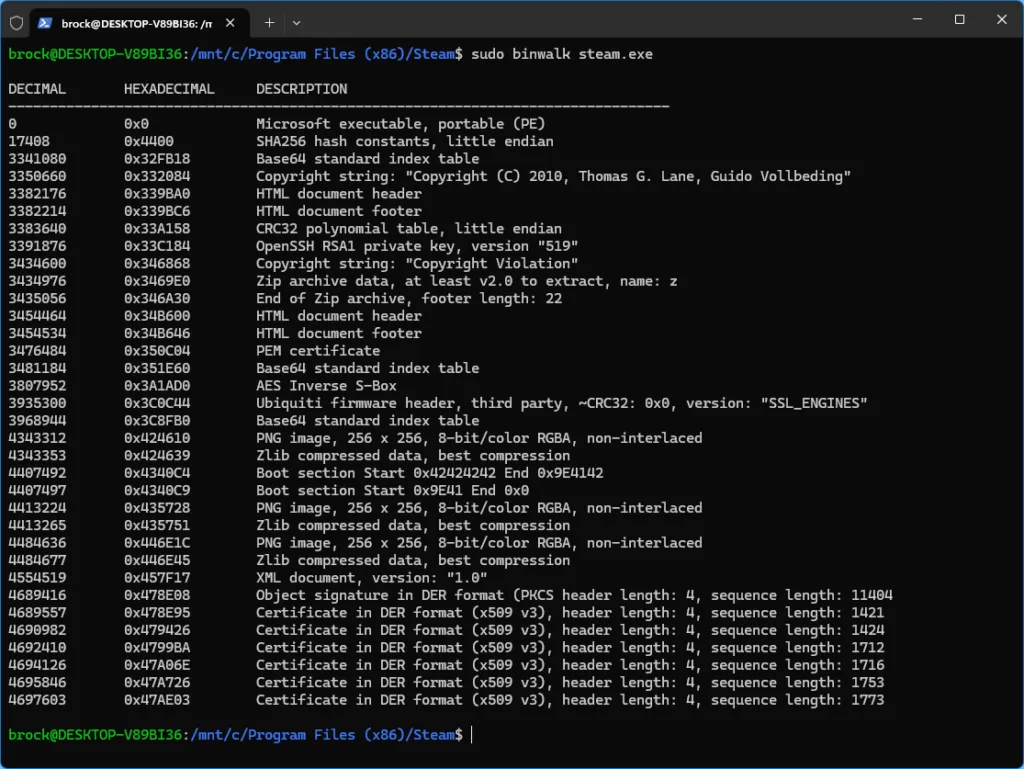

Now that we understand what file signatures are and how they work, we actually already understand how Binwalk works to identify embedded files! Originally written to find embedded data within firmware files (usually .bin) it can be used on any file! So lets take a look at steam.exe again, and see what binwalk finds.

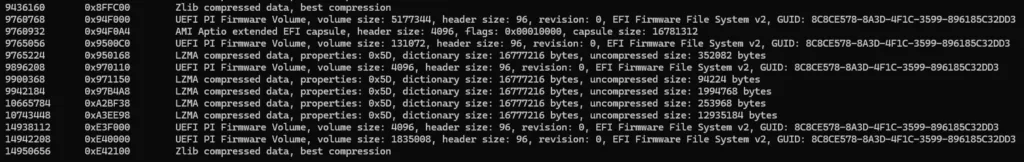

Just above is another example using my motherboards BIOS update file – Just to show you some other things it finds. You can also check this GitHub page to view the most up to date signatures binwalk detects.
$ binwalk --list ---------------------------------------------------------------------------------------------------- Signature Description Signature Name Extraction Utility ---------------------------------------------------------------------------------------------------- 7-zip archive data 7zip 7zz AES Acceleration Table aes_acceleration_table None AES Forward Table aes_forward_table None AES RCON aes_rcon None AES Reverse Table aes_reverse_table None AES S-Box aes_sbox None Android boot image android_bootimg None Android sparse image android_sparse Built-in Apple Disk iMaGe dmg dmg2img APple File System apfs 7zz Arcadyan obfuscated LZMA arcadyan Built-in ARJ archive data arj 7zz Autel obfuscated firmware autel Built-in BIN firmware header binhdr None BMP image (Bitmap) bmp Built-in BTRFS file system btrfs None bzip2 compressed data bzip2 Built-in CFE bootloader cfe None CHK firmware header chk None compress'd data compressd 7zz Copyright text copyright None CPIO ASCII archive cpio 7zz CramFS filesystem cramfs 7zz CRC32 polynomial table crc32 None CSman DAT file csman Built-in D-Link Encrpted Image encrpted_img Built-in D-Link MH01 firmware image mh01 Built-in D-Link TLV firmware dlink_tlv Built-in Dahua ZIP archive dahua_zip Built-in Debian package file deb None Device tree blob (DTB) dtb Built-in DirectX shader bytecode dxbc Built-in DKBS firmware header dkbs Built-in DLK encrypted firmware dlke Built-in DLOB firmware header dlob None DMS firmware image dms Built-in DOS Master Boot Record mbr Built-in DPAPI blob data dpapi None eCos kernel exception handler ecos None EFI Global Partition Table efigpt 7zz ELF binary elf None EXT filesystem ext tsk_recover FAT file system fat tsk_recover GIF image gif Built-in GPG signed file gpg_signed Built-in gzip compressed data gzip Built-in HP Printer Job Language data pjl None Intel serial flash for PCH ROM pchrom uefi-firmware-parser ISO9660 primary volume iso9660 7zz JBOOT firmware header jboot_arm None JBOOT SCH2 header jboot_sch2 Built-in JBOOT STAG header jboot_stag None JFFS2 filesystem jffs2 jefferson JPEG image jpeg Built-in Known encrypted firmware encfw Built-in Linux ARM boot executable zImage linux_arm_zimage None Linux kernel ARM64 boot image linux_arm64_boot_image None Linux kernel boot image linux_boot_image None Linux kernel version linux_kernel vmlinux-to-elf LogFS file system logfs None LUKS header luks None LZ4 compressed data lz4 lz4 LZFSE compressed data lzfse lzfse LZMA compressed data lzma Built-in LZO compressed data lzop lzop Matter OTA firmware matter_ota Built-in MD5 hash constants md5 None Microsoft Cabinet archive cab cabextract Motorola S-record srecord srec_cat Motorola S-record (generic) srecord_generic srec_cat NTFS partition ntfs tsk_recover OpenSSL encryption openssl Built-in PackImg firmware header packimg None Pcap-NG capture file pcapng Built-in PDF document pdf None PEM certificate pem_certificate Built-in PEM private key pem_private_key Built-in PEM public key pem_public_key Built-in PKCS DER hash pkcs_der_hash None PNG image png Built-in POSIX tar archive tarball tar QEMU QCOW Image qcow None QNX IFS image qnx_ifs dumpifs RAR archive rar unrar RIFF image riff Built-in RomFS filesystem romfs Built-in RSA encrypted session key rsa None RTK firmware header rtk None SEAMA firmware header seama None SHA256 hash constants sha256 None SHRS encrypted firmware shrs Built-in SquashFS file system squashfs sasquatch SVG image svg Built-in TP-Link firmware header tplink None TP-Link RTOS firmware tplink_rtos None TRX firmware image trx Built-in U-Boot version string uboot None UBI image ubi ubireader_extract_images UBIFS image ubifs ubireader_extract_files UEFI capsule image uefi_capsule uefi-firmware-parser UEFI PI firmware volume uefi_pi_volume uefi-firmware-parser uImage firmware image uimage Built-in VxWorks symbol table vxworks_symtab Built-in VxWorks WIND kernel version wind_kernel None Windows CE binary image wince Built-in Windows PE binary pe None XZ compressed data xz Built-in YAFFSv2 filesystem yaffs unyaffs ZIP archive zip 7zz Zlib compressed file zlib Built-in ZSTD compressed data zstd zstd ---------------------------------------------------------------------------------------------------- Total signatures: 111 Extractable signatures: 72
That’s quite a bit of stuff output from running binwalk on steme.exe. As you can see, binwalk can identify tons of different file types. So not only can it be used to see whats in the file, it also tells you where in the file. This allow us to use something like “dd” in Linux to extract the files ourself if we would like to, or utilize binwalk’s extraction features.
Binwalk: Extraction
Ok, we finally made it to the important part! Getting the data we want out. Below are the arguments I like to use most of the time. As well as a screenshot of what the output files look like.
binwalk -MDe steam.exe-M, –matryoshka Recursively scan extracted files
-D, –dd= Extract signatures (regular expression), give the files an extension of , and execute
-e, –extract Automatically extract known file types
brock@DESKTOP-V89BI36:/mnt/c/Program Files (x86)/Steam$ sudo binwalk -MDe --run-as=root steam.exe
[sudo] password for brock:
Scan Time: 2025-12-06 21:02:41
Target File: /mnt/c/Program Files (x86)/Steam/steam.exe
MD5 Checksum: 0384cab4ffa96ec5973f99cd18852e75
Signatures: 411
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
0 0x0 Microsoft executable, portable (PE)
17408 0x4400 SHA256 hash constants, little endian
3341080 0x32FB18 Base64 standard index table
3350660 0x332084 Copyright string: "Copyright (C) 2010, Thomas G. Lane, Guido Vollbeding"
3382176 0x339BA0 HTML document header
3382214 0x339BC6 HTML document footer
3383640 0x33A158 CRC32 polynomial table, little endian
3391876 0x33C184 OpenSSH RSA1 private key, version "519"
3434600 0x346868 Copyright string: "Copyright Violation"
3434976 0x3469E0 Zip archive data, at least v2.0 to extract, name: z
3435056 0x346A30 End of Zip archive, footer length: 22
3454464 0x34B600 HTML document header
3454534 0x34B646 HTML document footer
3476484 0x350C04 PEM certificate
3481184 0x351E60 Base64 standard index table
3807952 0x3A1AD0 AES Inverse S-Box
3935300 0x3C0C44 Ubiquiti firmware header, third party, ~CRC32: 0x0, version: "SSL_ENGINES"
3968944 0x3C8FB0 Base64 standard index table
4343312 0x424610 PNG image, 256 x 256, 8-bit/color RGBA, non-interlaced
4343353 0x424639 Zlib compressed data, best compression
4407492 0x4340C4 Boot section Start 0x42424242 End 0x9E4142
4407497 0x4340C9 Boot section Start 0x9E41 End 0x0
4413224 0x435728 PNG image, 256 x 256, 8-bit/color RGBA, non-interlaced
4413265 0x435751 Zlib compressed data, best compression
4484636 0x446E1C PNG image, 256 x 256, 8-bit/color RGBA, non-interlaced
4484677 0x446E45 Zlib compressed data, best compression
4554519 0x457F17 XML document, version: "1.0"
4689416 0x478E08 Object signature in DER format (PKCS header length: 4, sequence length: 11404
4689557 0x478E95 Certificate in DER format (x509 v3), header length: 4, sequence length: 1421
4690982 0x479426 Certificate in DER format (x509 v3), header length: 4, sequence length: 1424
4692410 0x4799BA Certificate in DER format (x509 v3), header length: 4, sequence length: 1712
4694126 0x47A06E Certificate in DER format (x509 v3), header length: 4, sequence length: 1716
4695846 0x47A726 Certificate in DER format (x509 v3), header length: 4, sequence length: 1753
4697603 0x47AE03 Certificate in DER format (x509 v3), header length: 4, sequence length: 1773
Scan Time: 2025-12-06 21:02:45
Target File: /mnt/c/Program Files (x86)/Steam/_steam.exe-6.extracted/424639
MD5 Checksum: cf93e82f08b20e896d044bdbe1bf4b2c
Signatures: 411
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
Scan Time: 2025-12-06 21:02:45
Target File: /mnt/c/Program Files (x86)/Steam/_steam.exe-6.extracted/435751
MD5 Checksum: ce8b997ea29fd4cb68776af65b1a49af
Signatures: 411
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
Scan Time: 2025-12-06 21:02:45
Target File: /mnt/c/Program Files (x86)/Steam/_steam.exe-6.extracted/446E45
MD5 Checksum: 19115af34f22073c014e5de1d7b26e3a
Signatures: 411
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
229393 0x38011 MySQL MISAM index file Version 1

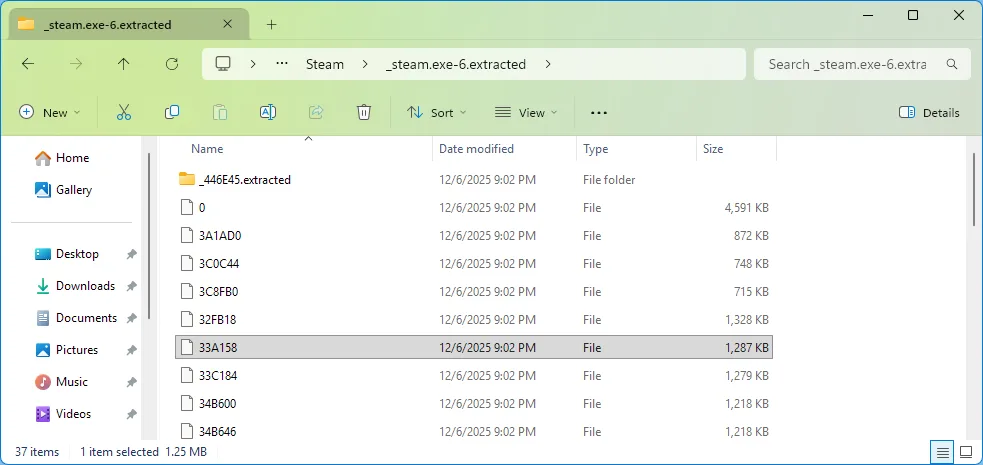

You might have noticed, the files are named the base offset address of the data. That just means its telling us how far from the start of the file the data begins; So from the start of the file, we move X bytes, and begin reading until (in this case) we hit the beginning of the next detected file signature.
Binwalk: Command Arguments
Binwalk v2.3.3
Craig Heffner, ReFirmLabs
https://github.com/ReFirmLabs/binwalk
Usage: binwalk [OPTIONS] [FILE1] [FILE2] [FILE3] …
-B, –signature Scan target file(s) for common file signatures
-R, –raw= Scan target file(s) for the specified sequence of bytes
-A, –opcodes Scan target file(s) for common executable opcode signatures
-m, –magic= Specify a custom magic file to use
-b, –dumb Disable smart signature keywords
-I, –invalid Show results marked as invalid
-x, –exclude= Exclude results that match
-y, –include= Only show results that match
-e, –extract Automatically extract known file types
-D, –dd= Extract signatures (regular expression), give the files an extension of , and execute
-M, –matryoshka Recursively scan extracted files
-d, –depth= Limit matryoshka recursion depth (default: 8 levels deep)
-C, –directory= Extract files/folders to a custom directory (default: current working directory)
-j, –size= Limit the size of each extracted file
-n, –count= Limit the number of extracted files
-0, –run-as= Execute external extraction utilities with the specified user’s privileges
-1, –preserve-symlinks Do not sanitize extracted symlinks that point outside the extraction directory (dangerous)
-r, –rm Delete carved files after extraction
-z, –carve Carve data from files, but don’t execute extraction utilities
-V, –subdirs Extract into sub-directories named by the offset
-E, –entropy Calculate file entropy
-F, –fast Use faster, but less detailed, entropy analysis
-J, –save Save plot as a PNG
-Q, –nlegend Omit the legend from the entropy plot graph
-N, –nplot Do not generate an entropy plot graph
-H, –high= Set the rising edge entropy trigger threshold (default: 0.95)
-L, –low= Set the falling edge entropy trigger threshold (default: 0.85)
-W, –hexdump Perform a hexdump / diff of a file or files
-G, –green Only show lines containing bytes that are the same among all files
-i, –red Only show lines containing bytes that are different among all files
-U, –blue Only show lines containing bytes that are different among some files
-u, –similar Only display lines that are the same between all files
-w, –terse Diff all files, but only display a hex dump of the first file
-X, –deflate Scan for raw deflate compression streams
-Z, –lzma Scan for raw LZMA compression streams
-P, –partial Perform a superficial, but faster, scan
-S, –stop Stop after the first result
-l, –length= Number of bytes to scan
-o, –offset= Start scan at this file offset
-O, –base= Add a base address to all printed offsets
-K, –block= Set file block size
-g, –swap= Reverse every n bytes before scanning
-f, –log= Log results to file
-c, –csv Log results to file in CSV format
-t, –term Format output to fit the terminal window
-q, –quiet Suppress output to stdout
-v, –verbose Enable verbose output
-h, –help Show help output
-a, –finclude= Only scan files whose names match this regex
-p, –fexclude= Do not scan files whose names match this regex
-s, –status= Enable the status server on the specified port
Conclusion
So for now, I think that’s all I have! Play around a bit with the extraction arguments as there are a few different and useful ways you can have everything extracted. Otherwise, using “dd” in linux is by far the easiest if you are just looking to extract a single artifact.
I hope this was at least interesting and something more people will play with as it can be quite a lot of fun.
